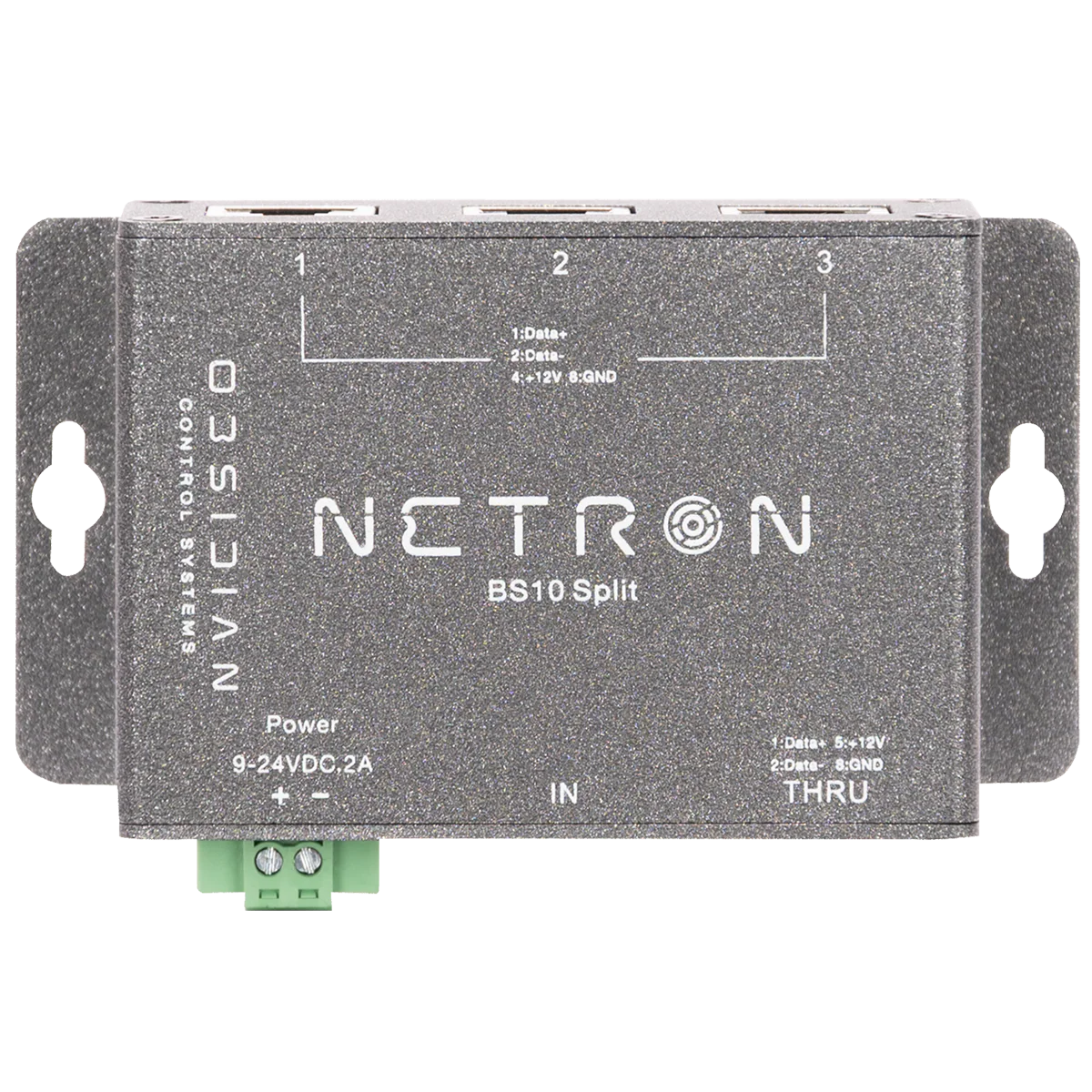

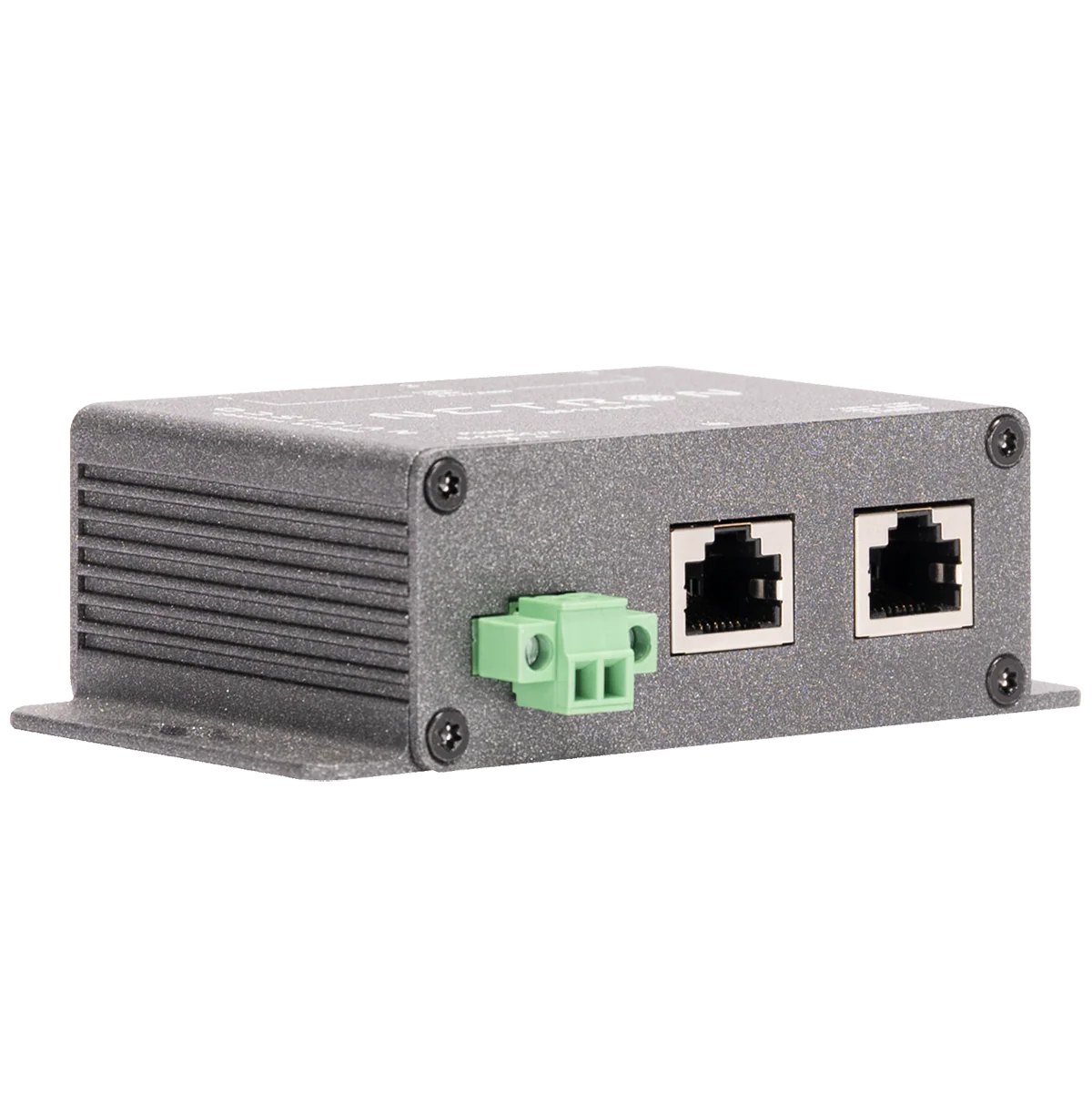

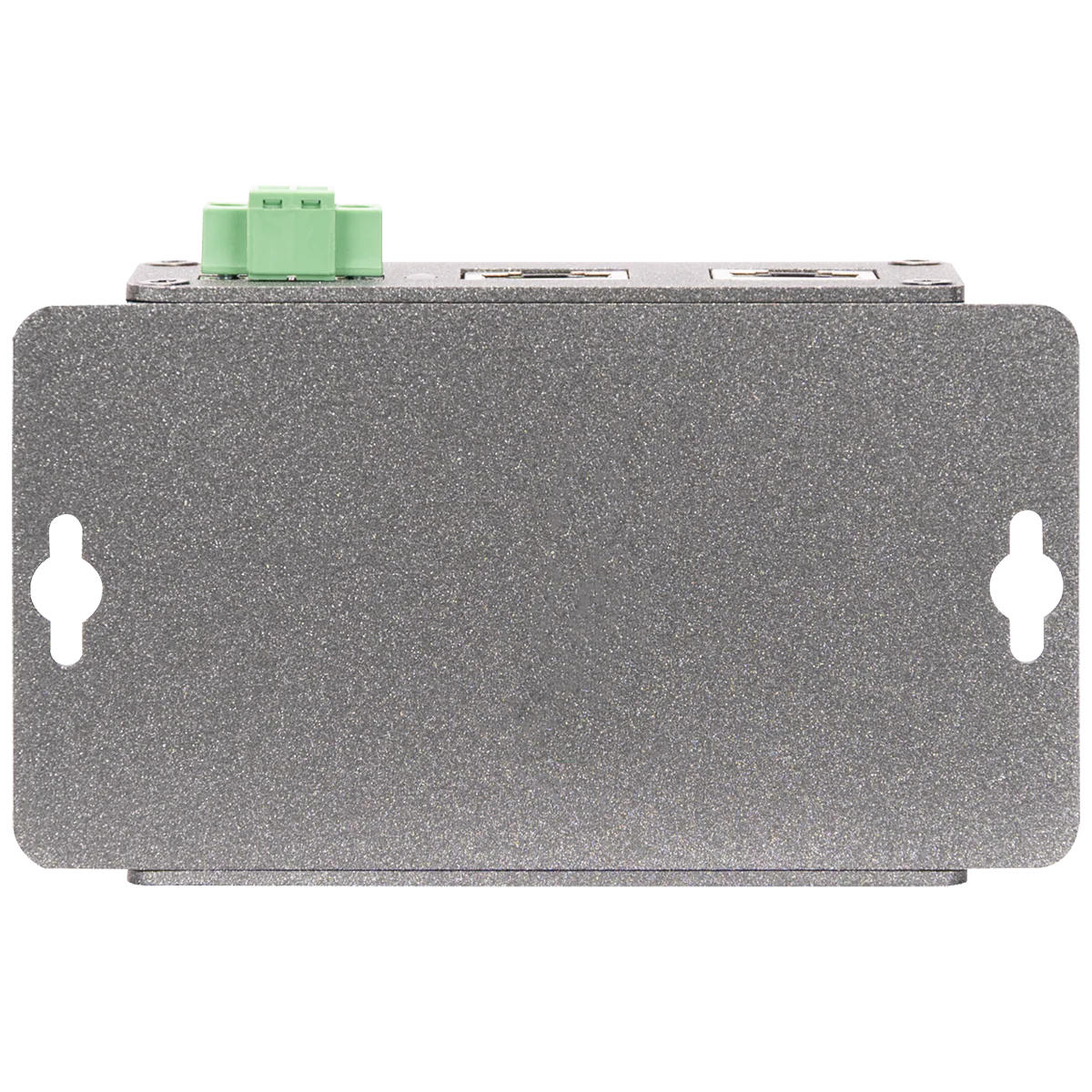

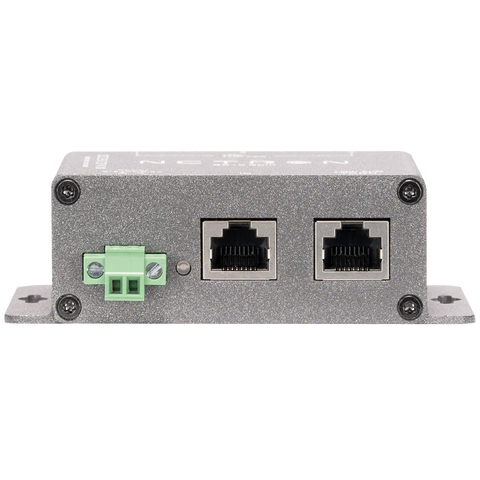

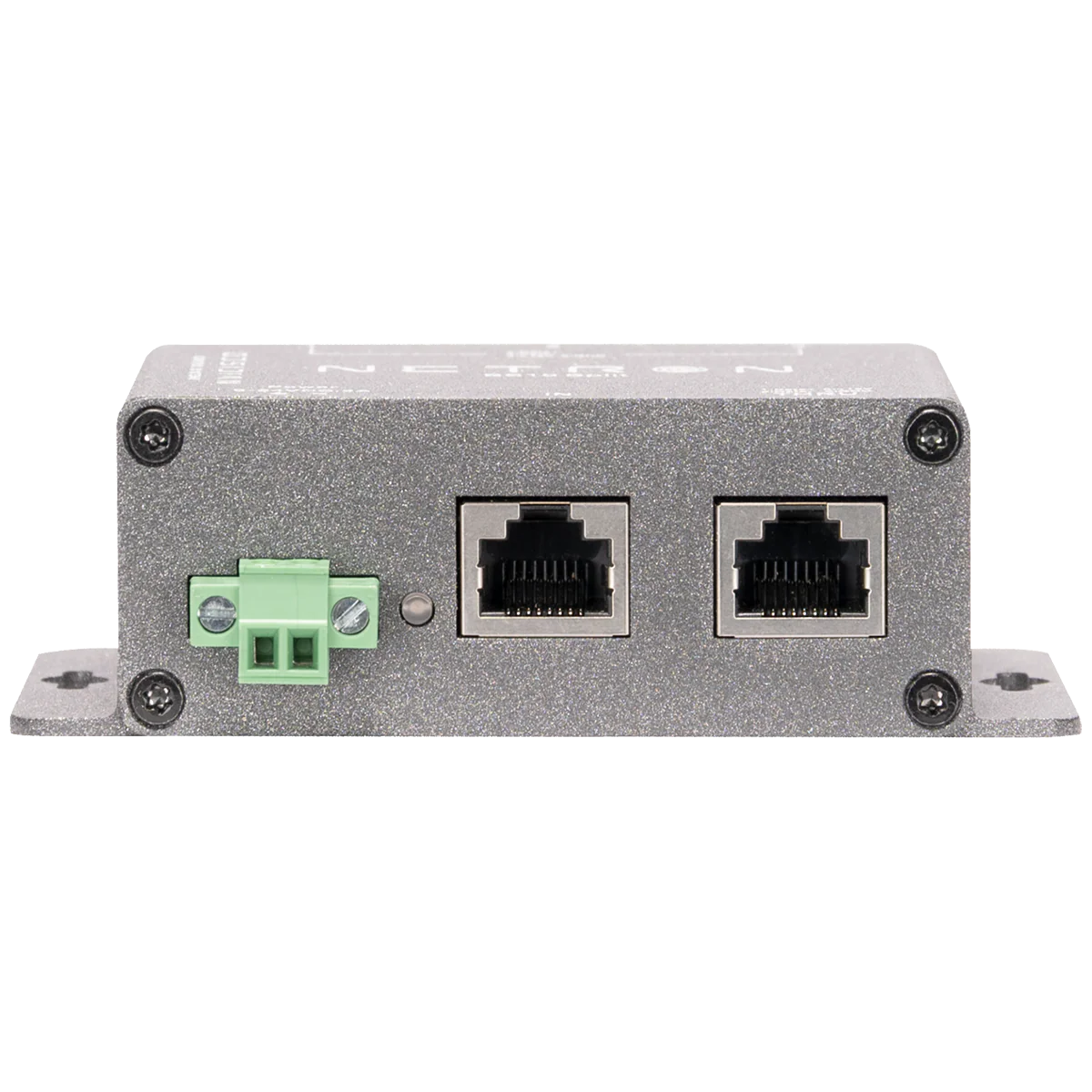

NETRON BS10 Split

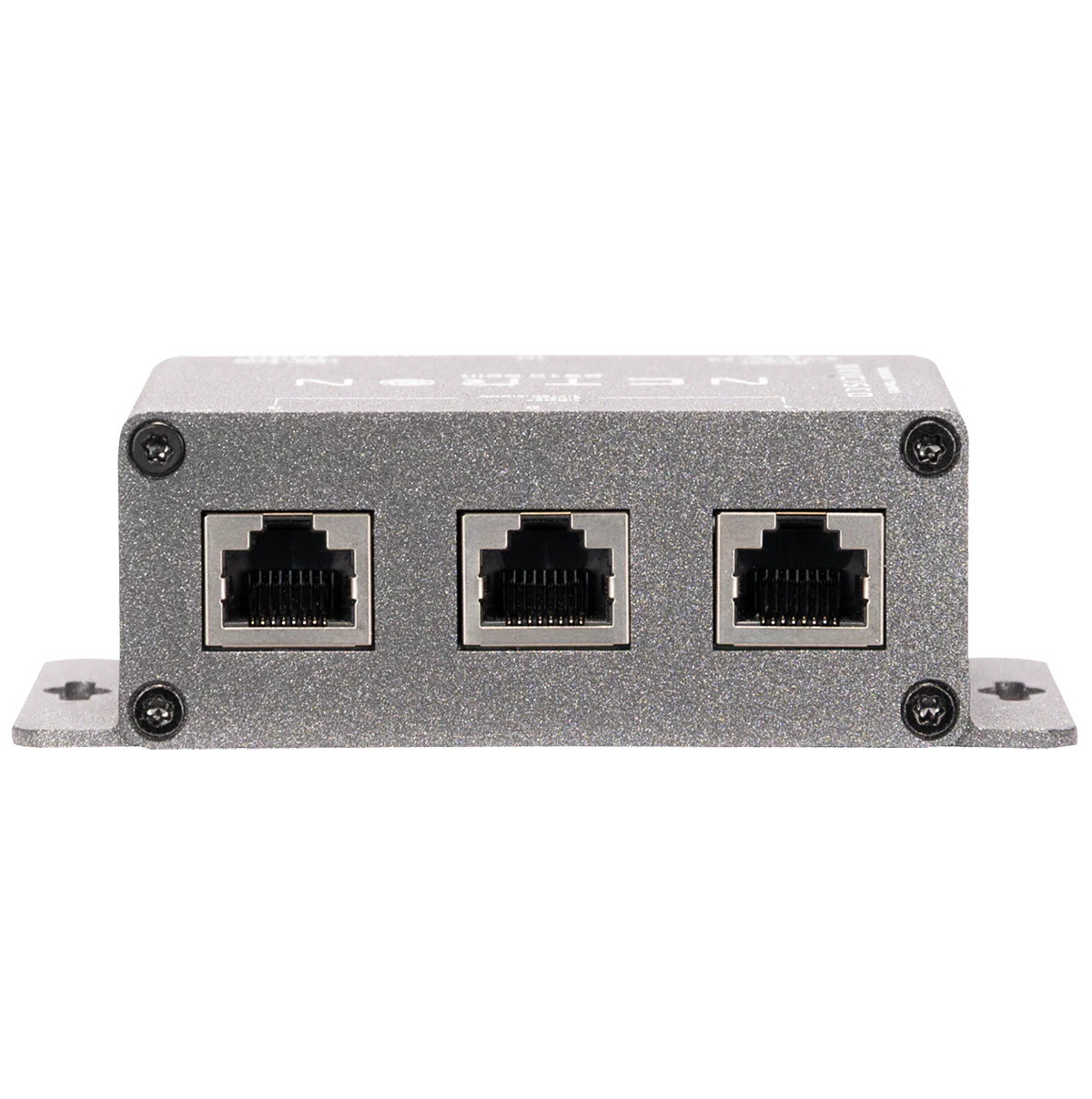

The NETRON BS10 Split is a compact accessory designed to expand the capacity of the BS10 wall-station system for the NETRON series, enabling multiple button stations and longer cable runs. It acts as a power injector and data splitter for the BS10 remote button station line, with one data input, one thru output, and three RJ-45 outputs for BS10 stations. Using standard CAT5e wiring (up to a combined 300 ft/100 m length), it allows you to connect up to ten BS10 stations in one network and spread them across multiple locations—all while enabling cue and preset recall (through the BS10 stations) from the main EN12i node system.
